MRAZ3 AGR

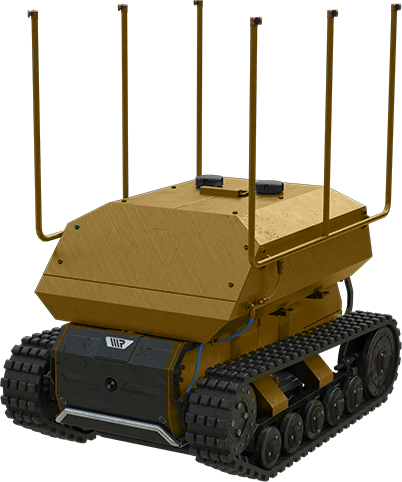

Agricultural robot

A fully autonomous mobile robot has been meticulously designed with the physical dimensions necessary for seamless maneuverability in orchards and vineyards. Its compact width allows it to navigate through narrow passages as small as 1 meter. This level of flexibility and adaptability empowers farmers and growers to optimize their spraying and fertilization processes.

With our robot, farmers can achieve optimal yields while reducing waste and resource consumption.

It contains 2 separate containers for disinfectant in a liquid state in a total volume of 50 liters.

Disinfection nozzles provide spraying at an angle of 360 degrees to a distance of 2 meters from the central axis of the robot.

USE CASES

DEPLOYABLE IN ALL ENVIRONMENTS

optimize spraying and fertilization processes

pest detection and management system

enhances overall efficiency and productivity

Parameters
Material
stainless steel
Maximum speed
10km/h
Battery capacity
77Ah at 48V
Battery life
12 hours
Scanning speed
5000 m2/h
Payload
400kg
Replacing battery
10 sec
IP
67
Climbing
up to 40 degrees
